Continuous Thermal Capsulotomy: A Simple Solution for a Longstanding Problem

Capsulorhexis creation has been called both the most challenging and the most crucial step in phacoemulsification.^1,2 A properly constructed capsulorhexis serves as the foundation for lens extraction and stable in-the-bag IOL fixation, but an errant capsulorhexis or an anterior capsular tear will compound the difficulty of each subsequent step of the procedure. Anterior capsular tears are particularly significant because they may extend to the equator and beyond. The mean incidence of anterior tears with manual capsulorhexis has been reported to be 2.3%, with a range as high as 5.1% among trainees.^3,4

A properly sized continuous curvilinear capsulorhexis (CCC) allows the capsular bag to completely overlap the IOL optic, reducing the incidence of posterior capsular opacification. Histopathologic observations suggest that creating a CCC with a diameter slightly smaller than that of the IOL optic allows the edge of the capsule to adhere to the anterior surface of the optic, creating a closed system that enhances the efficiency of the barrier effect. However, in order to ensure that the anterior capsule overlaps the IOL edge by 360º after implantation, a manual CCC must be created with an average diameter somewhat smaller than ideal because of unavoidable variations in centration, diameter, and circularity.⁵ In clinical practice, where a range of surgical expertise is found, Findl reported 18% of cases with no rhexis overlap of the IOL.⁶

Beyond the safety implications of basic capsulorhexis sizing and location, there is new evidence that a perfectly centered, round capsulotomy results in less IOL tilt and decentration and a more predictable effective lens position, leading to more accurate refractive results.⁷ Although patients today can opt for femtosecond laser cataract surgery in conjunction with premium IOL upgrades, there remains a need for a simpler, safer, more cost-effective, and more predictable solution so that all surgeons can construct the ideal capsulotomy every time. Continuous thermal capsulotomy may offer such a solution. With the ApertureRx Continuous Capsulotomy System (International BioMedical Devices), thermal power is delivered through a microincision-compatible ring.

THERMAL CAPSULOTOMY

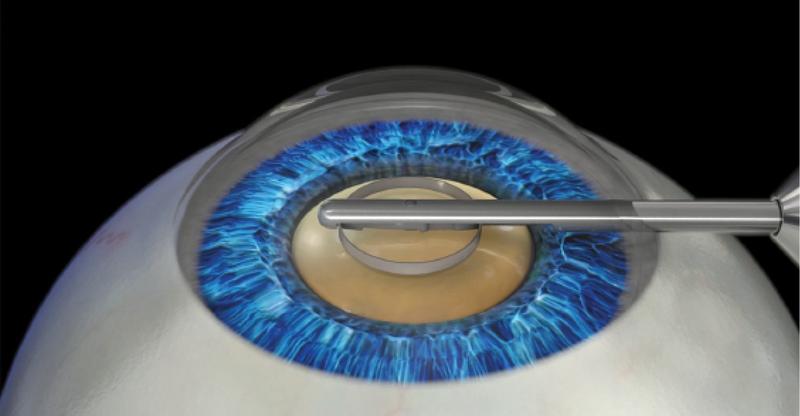

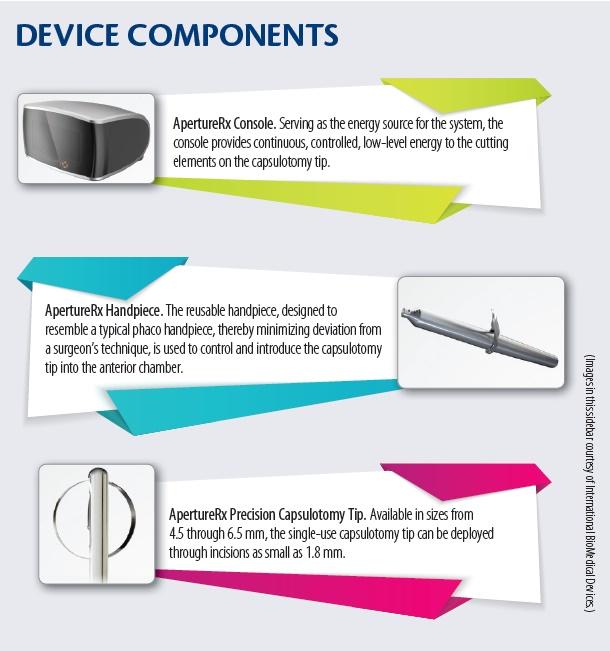

The 360º ring, which extends from an ergonomic handpiece, allows uniform contact with the anterior capsule (Figure). The procedure can be completed in milliseconds under the protection of an ophthalmic viscosurgical devices. As the ring is retrieved, it automatically captures and removes the perfectly circular cap. The disposable tip is discarded after the case, and the reusable handpiece is sterilized in standard fashion. For more information on the components of the ApertureRx, see Device Components.

The key features of the ApertureRx are its continuous 360º thermal element, which overcomes the inevitable gap required by radiofrequency devices with loop wire or ring cutting elements, and its uniform contact with the anterior capsule, which obviates the necessity for vacuum suction. This technology has the potential to ensure safer cataract surgeries and may also provide more predictable visual outcomes for patients.

CONCLUSION

By simplifying the current manual CCC procedure, the ApertureRx may allow a broader range of surgeons throughout the world to construct the capsulotomy with precise placement and a high degree of consistency. The ApertureRx Continuous Capsulotomy System has not been cleared or approved for use in Europe or the United States. After preclinical studies are complete, we surgeons can look forward to initiating clinical trials of the ApertureRx technology. n

Mark Packer, MD, CPI
• Mark Packer MD Consulting, Boulder, Colorado
• mark@markpackerconsulting.com
• financial disclosure: chief medical officer (International BioMedical Devices)
